Your tracked carrier with 13,200 kg (29,100 lb) payload capacity

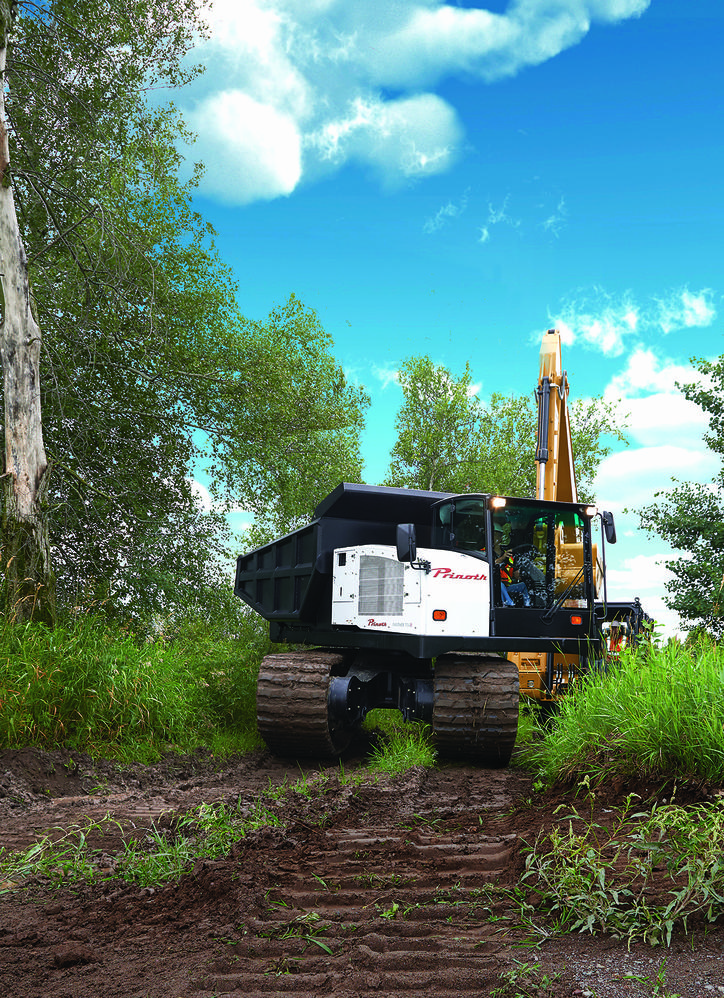

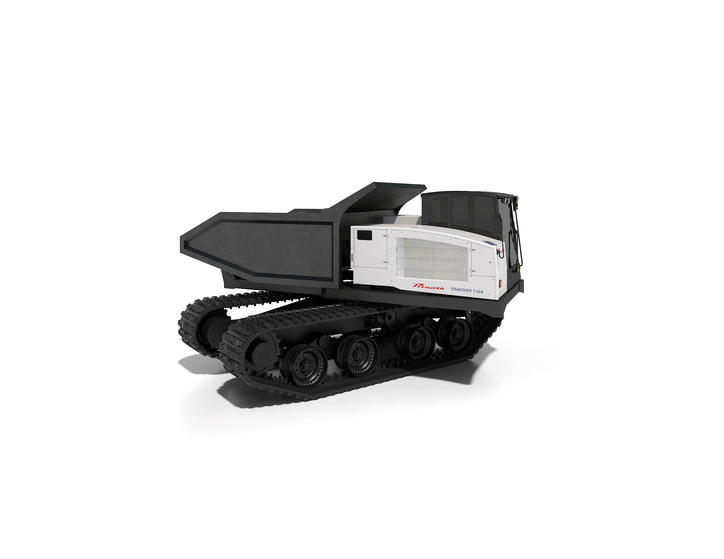

The PANTHER T14R Tracked Rotating Dump Vehicle offers the highest speed combined with the highest payload in its class and will set new standards for productivity and mobility. Presenting a patent-pending innovation called a direction reset, which essentially allows the operator to reset the vehicle’s upper and lower portions’ alignment (front to back) by simply pushing a button, PRINOTH's rotating vehicle allows the continuous rotation of the upper portion of the vehicle independent from the undercarriage. With its 13,200 kg (29,100 lb.) payload capacity, this rubber tracked crawler carrier has the largest payload of any vehicle of this type in its category. The rotating separation of this vehicle allows the operator to work in tight, sensitive areas where other vehicles do not have access.
ОСНОВНЫЕ ХАРАКТЕРИСТИКИ
Cab configuration | Wide cab only |
Safety features | ROPS & FOPS (option), Direction Reset, Side & Rear View Cameras |
Overall dimensions - mm (inches) | Width: 2,570 mm (101 in) / Length: 5,782 mm (228 in) / Height: 3,214 mm (127 in) |
Engine type / Emission standard | Turbo diesel, electronic fuel system / EPA Tier 4 Final EU Stage IV |
Track type | Metal embedded rubber tracks (endless) |
Ground pressure basic / loaded vehicle | 279 g/cm² (3.97 psi) / 524 g/cm² (7.46psi) |
Shipping weight | 16,860 kg (37,190 lb) |
Controls | Microcontroller with color display, steering wheel, forward-neutral-reverse switch and progressive speed pedal and throttle |
Payload | 13,200kg (29,100 lb) |
Power @ 2200 rpm / Torque @ 1400 rpm | 205 kw (275 hp) / 1,257 N·m (927 lb·ft) |
Maximum speed unloaded | 13 km/h (8.1 mph) |
Gradeability - Uphill & Downhill / Sidehill | 33% (15°) / 33% (15°) |
